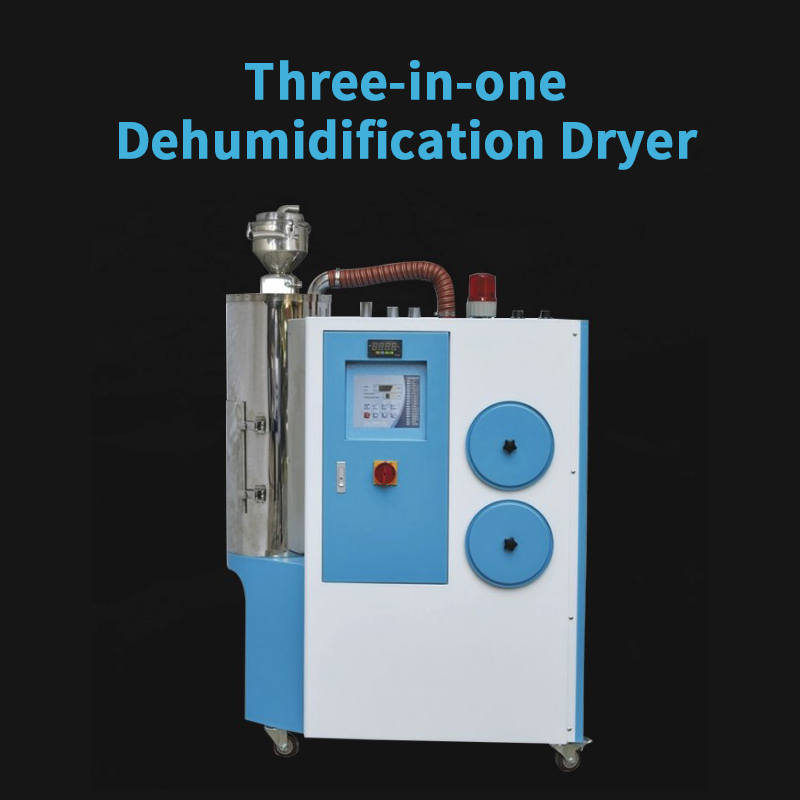

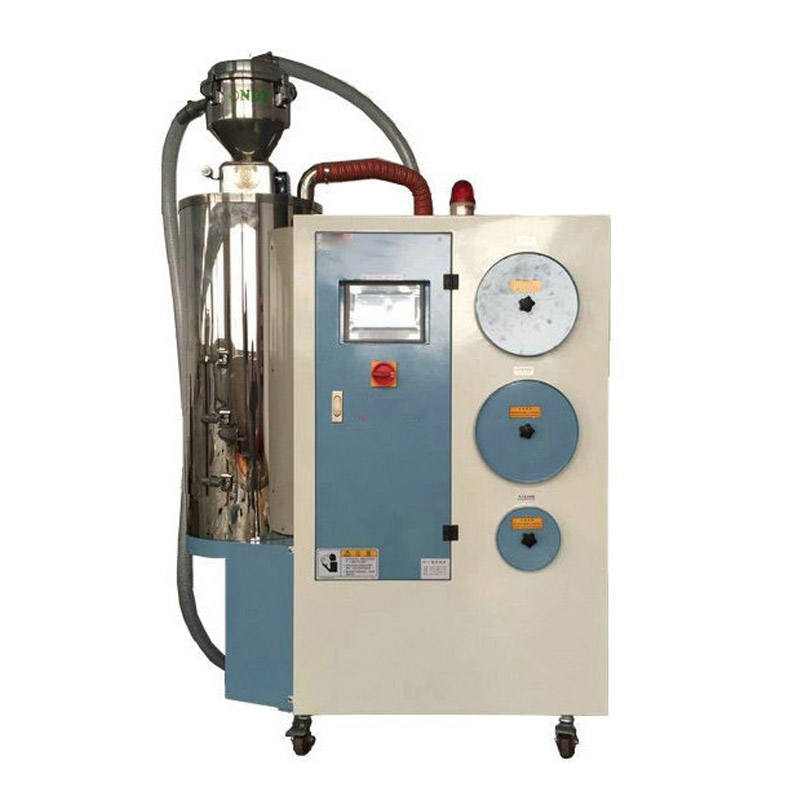

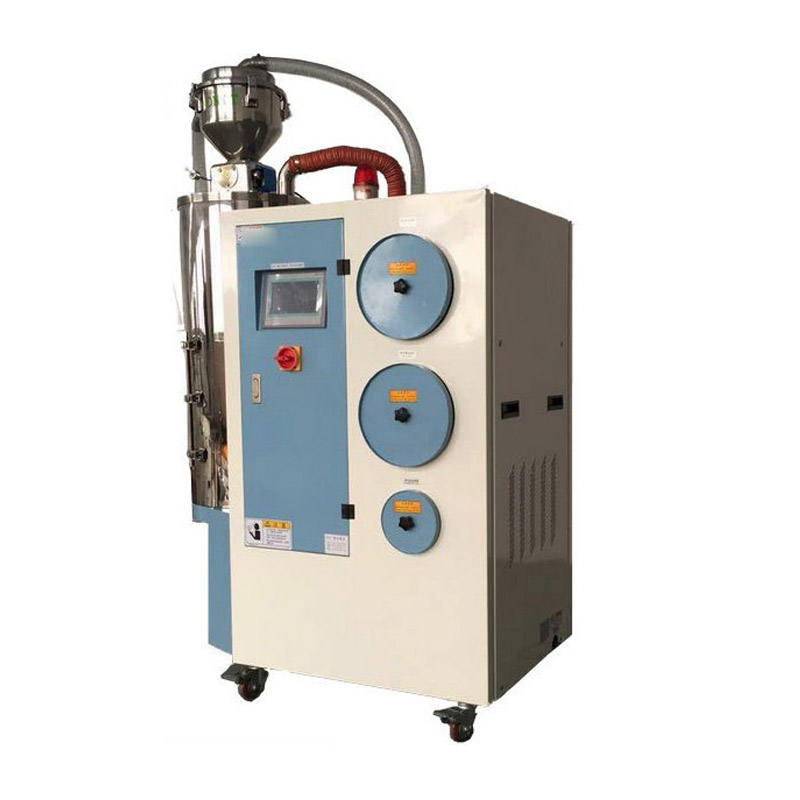

100KG Three-in-one Dehumidification Dryer

100KG Three-in-one Dehumidification Dryer

Introduction

The 100KG Three-in-one Dehumidification Dryer can be applied to PA, PET, PC, PBT, CA and other materials with strong hygroscopicity. It has been proved through practice to reduce the dew point of the drying wind to below -40°C. The Three-in-one Dehumidification Dryer has 25KG, 50KG, 75KG, 100KG, 150KG, 200KG and can achieve a dehumidification processing capacity of 1000KG. The optical-grade dehumidification dryer system is equipped with a high-precision high-efficiency filter, which can effectively filter fine dust ions up to 0.3μm, with a filtration rate of 99.9%.

Three-in-one Dehumidification Dryer Parameter Table

Features of Three-in-one Dehumidification Dryer

1. It integrates three functions of dehumidification, drying and two-stage feeding;

2. The dehumidification part is equipped with a wheel device, which can provide stable and low dew point air, and the lowest dew point can reach -50℃;

3. The stainless steel double-layer heat preservation drying barrel adopts the design of lower blowing pipe, so that the raw materials are evenly dried and effectively prevent the loss of heat;

4. The feeding system is equipped with a shut-off valve to ensure that there is no residual raw material in the material pipe;

5. The closed loop feeding system can prevent the raw materials from being polluted or re-moisture;

6. The optical-grade model is equipped with a boiling electric eye hopper, which can remove the fine powder in the raw material, and can avoid the generation of stains in the molding of optical-grade products;

7. The optical-grade model system is equipped with high-precision and high-efficiency filters, which can effectively filter dust ions up to 0.3μm, and the filtration rate is up to 99.9%;

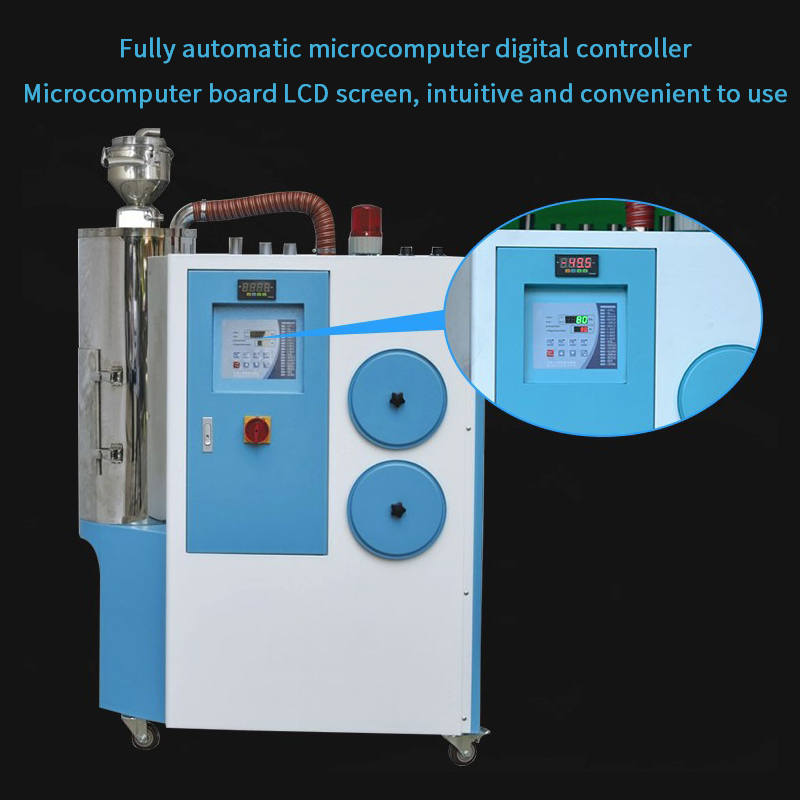

8. PLC control with LCD touch man-machine interface can be purchased, the operation is centralized and convenient, and the whole machine can be controlled to run automatically;

9. Dew point detection device can be purchased;

10. Cyclone dust collector, oil filter and other accessories can be purchased

Three-in-one Dehumidification Dryer Structure Diagram

A. Ceramic honeycomb runner

B. Cooler

C. Dehumidification heater

D. Regenerative heater

E. Regenerative motor

F. Suction motor

G. Dehumidification motor

H. Drying barrel

L. Suction hopper

Three-in-one Dehumidification Dryer Installation Diagram

Applications

Export Packing

FAQ

Q: How many years has your factory been established?

Answer: Our factory was established in 2016, but our engineers and technicians have worked in this industry for more than 15 years.

Q: How long is your delivery time?

Answer: We have some stocks of standard models. But if it takes about 3-7 working days to produce a normal machine.

If it is one or more units, it will take about 15-20 working days.

Q: How long is the warranty period of the 100KG Three-in-one Dehumidification Dryer?

Answer: Within 1 year from the date of leaving the factory, if the parts are faulty or damaged (except for the wearing parts due to quality problems), our company will provide these parts for free.

Q: What are your payment terms?

Answer: T/T 100% before delivery, L/C at sight

Q: Can you help us recommend a model suitable for our project?

Answer: Yes, we have engineers professionally calculate for you, and reasonably recommend the machine suitable for your use. Our engineers can check the details and make the structure. Based on the following points: 1) function recommendation; 2) power matching; 3) size determination 4) voltage recommendation; 5) applicable industry 6) machine drawings (if any) 7) other special requirements, etc.

Question: How to ensure that your products are of good quality?

Answer: We use the core components of international brand accessories, such as French Schneider Electric, etc. The configuration equipment has been load tested to ensure good quality and easy installation by users.

Why choose to buy a 100KG Three-in-one Dehumidification Dryer from us?

A. We have more than 20 years of production technology experience.

B. We can provide you with more suitable solutions.

C. Can provide you with customized services for a variety of needs.

D. Stable quality + fast delivery time + reasonable price + strong technical support + intimate after-sales service.

E. Our company has CE certification.
