50HP Water-cooled Box Chiller

50hp Water-cooled Box Chiller

Introduction

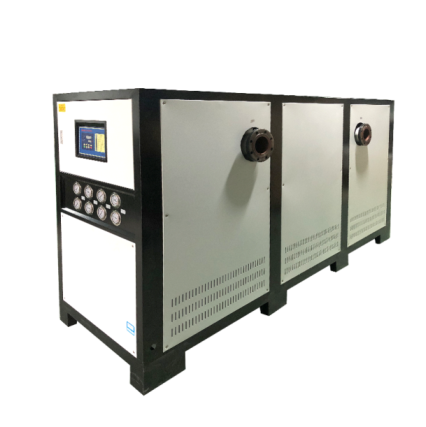

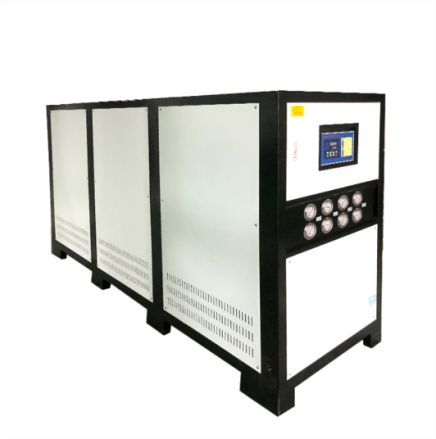

This is a 50HP water-cooled chiller. Large box-type chiller with a cooling capacity of 158KW (135880Kcal/hr). Widely used in a big variety of industry: large injection molding machine mold cooling, optical coating cooling, glycol cooling, electrophoresis cooling, etc...
Regular refrigents: R407C\R410A\R404A\R134A; environmentally friendly refrigerants available as per customer's requirements.
The 50HP chiller carries the CE certification mark. It can be used when connected to a power supply and a cooling water tower, and it is easy to install, and the cooling capacity is larger than that of air-cooled chillers.

The chiller adopts full hermetic scroll compressor from international famous brands such as Panasonic, Copeland, and Daikin. Stable operation, low noise and fast cooling. The standard temperature can be controlled at 5-35°C.
The machine is guaranteed for 1 year and provided with life-long technical service. The customized high-efficiency energy-saving system can save energy by 13% and reduce production costs. Create real value for customers and improve production efficiency.

Model: JSSL-50

Brand: Jiusheng

Voltage: 3PH-380V 50HZ (can be customized according to the needs of different regions)
Compressor power: 50HP/36.75KW
Temperature control range: 5-35℃
Pump power: 3.75W
Pump flow: 700L/MIN
Pump head: 16M
Cooling capacity: 158KW/hr (135880Kcal/hr)
Refrigerant: R22 (environmentally friendly refrigerant R407C/134A... available upon request)

Minimum order quantity: 1 set

Payment method: wire transfer, EXW, FOB/negotiation

Price: Negotiable

Place of Origin: Dongguan City, Guangdong Province, China

Certificate: CE

Delivery time: 10-20 days/negotiation

Service: OEM / ODM

Supply Ability: 500PCS/month

Packing: plywood packing

Features

1. High-precision temperature control, high-speed cooling efficiency, energy-saving and environmental friendly operation

2. world-renowned accessories. Under normal operation, the lifecycle can be extended to more than 10 years.

Panasonic/Daikin/Copeland compressors, Schneider Electric, Muchuan water pumps, Talos copper pipes, etc.

3. Streamlined aesthetic design, concave-convex design of the operation panel (humanized design), and the operation procedure is clear at a glance;

4. Comprehensive safety protection: 1) High and low pressure protection and safety valve of the refrigeration system; 2) Soft and hard double protection of compressor overload; 3) Phase loss, reverse, undervoltage and overvoltage protection of the power supply; 4) Water system Freeze protection and water flow protection.

Parameters

Note:The data is for reference only, please consult customer service for precise parameters.

Why buy a chiller from us?

A. Leading manufacturer of industrial chillers for 20 years.

B. Expert in industrial cooling solutions.

C. Many customized services can be provided for industrial chillers.

D. Stable quality + fast delivery time + reasonable price + strong technical support + intimate after-sales service.

E. Our industrial chillers have passed CE certification.

Applications
