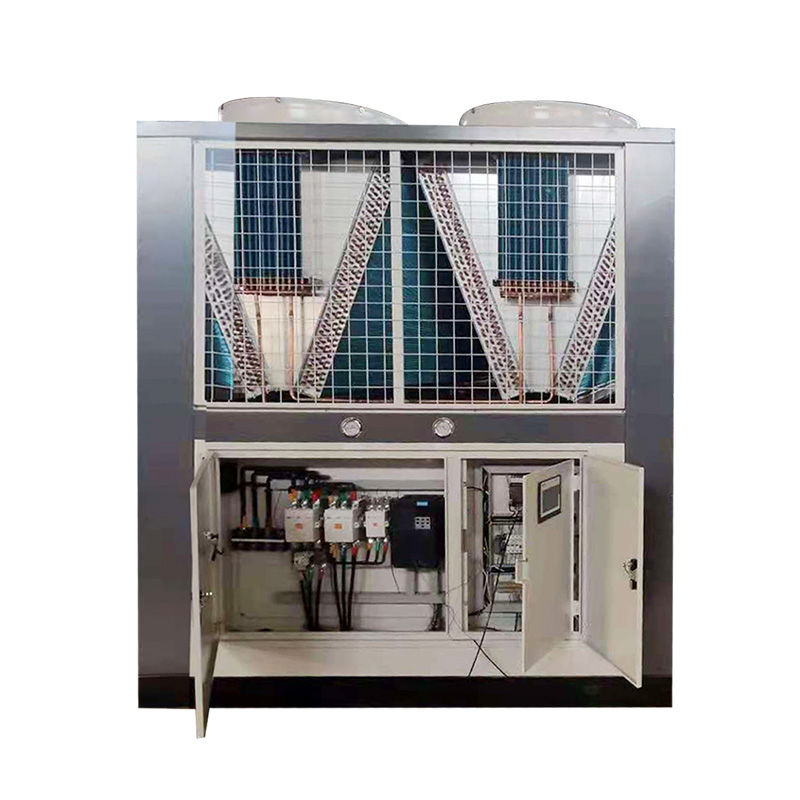

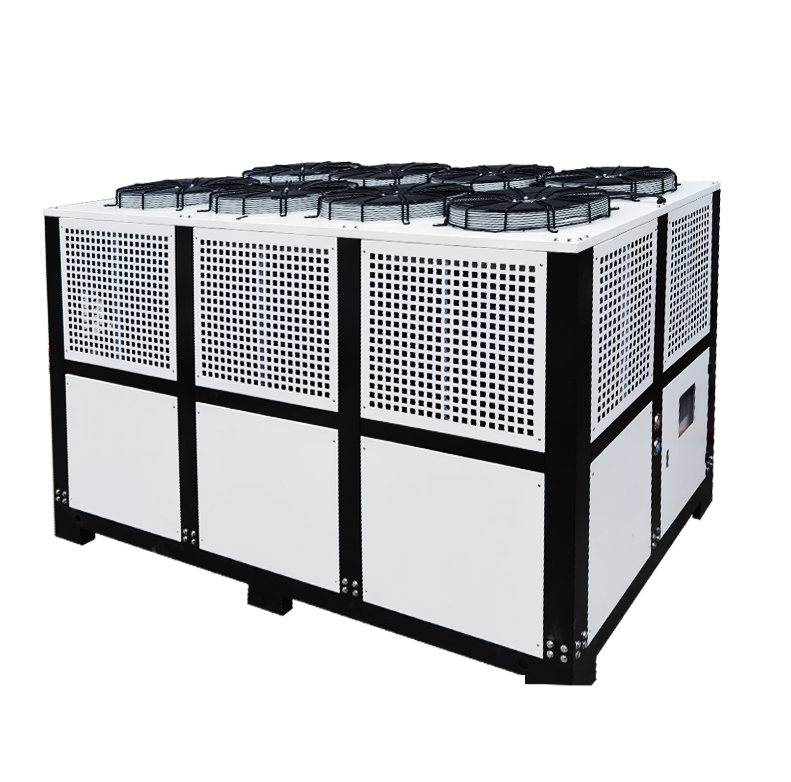

3PH-460V-60HZ 40HP Air Cooled Screw Water Chiller

3PH-460V-60HZ 40hp Air-cooled Screw Water Chiller

Introduction

3PH-460V-60HZ 40HP Air Cooled Screw Water Chiller is a CE-certified chiller. The air-cooled screw chiller adopts an international brand screw compressor, and is equipped with high-quality and high-performance copper tubes to make condensers, evaporators and world-famous control components, so that the unit has a small size, low noise, The advantages of large energy, long life, easy operation, etc., its beautiful and exquisite shape design and reliable and stable high-efficiency quality are outstanding among similar products!

Screw chillers for industrial use can provide 5～15℃chilled water, or use ethylene glycol solution as refrigerant, and can provide process chilled water solution at -5～+5℃, which can be used as ice storage, low temperature air supply, central air conditioning and other production process requirements The process cold source. At the same time, according to the user's requirements, the unit is specially designed to provide chillers with large temperature difference (the temperature difference between inlet and outlet water is 8-15℃). Or higher water temperature unit (outlet water temperature 15℃～25℃). The cooling capacity is 94KW-3360KW.

Standard temperature screw chiller

The outlet water temperature is 5℃～35℃, and the full hermetic screw compressor unit is used; it can be used as a process cooling for plastics, electroplating, swimming pool, central air-conditioning host, etc.

Medium temperature screw chiller

The outlet water temperature is -5℃～-45℃, using imported semi-hermetic screw compressor unit; it can provide -5℃～-45℃low temperature glycol solution or saline solution. It can be used as a cold source for processes such as chemical industry, medicine, cold storage, ice rink, etc. The cooling capacity is 55KW-2000KW.

Low temperature screw chiller

The outlet water temperature is -45℃～-110℃, and it can provide -45℃～-110℃alcohol or calcium chloride aqueous solution chilled water; it adopts binary cascade or ternary cascade screw refrigeration system. High energy efficiency ratio and stable operation.

At the same time, it can be designed according to the requirements of application. Ultra-low temperature, anti-corrosion, and explosion-proof special industrial screw chillers can meet the requirements of various industries for process cold sources.

Model: FLLG-40-A

Brand: Jiusheng

Minimum order quantity: 1pcs

Payment method: wire transfer, exw, fob / negotiation

Price: negotiation

Origin: Dongguan, Guangdong, China

Certificate: CE

Delivery time: 10-30 days / negotiation

Service: OEM / ODM

Supply Ability: 100PCS / Month

Packing: plywood packaging

Features

1. The compressor adopts an international brand, a new type of high-efficiency screw rotor compressor, which is 20%-30% more efficient than ordinary compressors, and has obtained IS9001 international quality certification from many European and American patents.

2. High efficiency 5:6 patented asymmetric rotor tooth profile.

3. Capacity control can adopt four-stage (100%-75%-50%-25%) or three-stage (100%-66%-33%) and stepless control system.

4. The combined design of 11 bearings and a-type axial thrust balance drum greatly increases the bearing life by 2.5-3.5 times.

5. The use of high-efficiency silicon steel sheet special groove design, and equipped with internal and external omnidirectional design cooling channel, so that the compressor motor can play the highest efficiency under any load.

6. The unique built-in oil pressure system does not need an oil pump to ensure that the compressor maintains the best lubrication effect. The oil separator adopts a double-layer filter method, which has a good oil filtering effect and the heat exchanger can exert its maximum capacity.

7. High efficiency, low noise and low vibration.

8. A variety of refrigerants are available. In addition to R22 refrigerant, environmentally friendly refrigerants such as R134a and R407c can also be used.

9. A full range of compressor volume ratios (VI=2.2/2.6/3.0/3.5) are available for selection. It can effectively avoid the extra energy consumption caused by over-compression or under-compression.

Parameters

FAQ

Q1: Are you a manufacturer?

A1: Yes, we have more than 20 years of experience in chiller manufacturing. We are located in Renzhou Industrial Zone, Shatian Town, Dongguan City, Guangdong Province, China. Welcome to visit anytime!

Q2: Can you help us recommend a model suitable for our project?

A2: Yes, we have engineers professionally calculate for you and reasonably recommend the machine suitable for your use. Our engineers can check the details and make the structure. Based on the following points: 1) cooling capacity; 2) refrigerant; 3) cold water inlet and outlet temperature 4) voltage; 5) what industry 6) architectural drawings (if any) 7) other special requirements.

Q3: How to ensure that your products are of good quality?

A3: We use international brand accessories, such as Japan's Panasonic brand, American Copeland, Japan Daikin, French Schneider Electric Emerson expansion valve, etc. All products cooler plants are tested under load to ensure good quality and easy installation. user.

Q4: How long is the warranty period?

A4: Counting from the date of production and leaving the factory, the free warranty is within 1 year. If both parties confirm that the quality causes the damage, a 12-month free warranty will be provided.

Q5: What is your payment method?

A5: We accept TT, LC, Western Union money transfer. Wire transfer and other methods, 50% deposit in advance for production, and the balance is paid before delivery.

Q6: Can you design for us?

A6: Yes, we can customize the production of chillers according to the user's detailed information. In addition, we can design the cooling circulation system (machine color appearance, cooling tower water pump, water tank water pump, closed evaporator). We can customize it for user needs.

Q7: What is the delivery time for production?

A7: For standard box-type chillers, 2HP-30HP is basically available in stock and can be shipped within 2 days after receipt. The production cycle of customized machines with special requirements such as non-standard voltage, refrigerant, internal structure, etc. is measured and determined according to the quantity. For screw chillers and scroll chillers, the production cycle is generally 25 working days after receiving the deposit.

Applications
