3PH-400V-50HZ 40HP Air-cooled Box Chiller

China Easy-maintainable 3PH-400V-50HZ 40hp Air-cooled Box Chiller with 12 months Warranty.This is a CE-certified chiller. It can be installed without a cooling tower, easy to install, easy to move, and fast cooling 40 horsepower chiller.

Model:JSFL-40-C

Send Inquiry

Product Description

3PH-400V-50HZ 40hp Air-cooled Box Chiller

Introduction

This is a 3PH-400V-50HZ 40HP air-cooled chiller. Large box-type chiller with a cooling capacity of 126KW (108360Kcal/hr). Widely used in every industry: large injection molding machine mold cooling, optical coating cooling, glycol cooling, electroplating oxidation tank cooling, etc...
The machine runs continuously for 8760 hours without failure, and is guaranteed for 12 months, we provide free technical guide services for more than 10 years. The customized high-efficiency energy-saving system can save energy by 13% and reduce production costs. Create real value for customers and improve production efficiency.

Model: JSFL-40-C

Brand: Jiusheng

Voltage: 3PH-400V-50HZ
Compressor power: 40HP/30KW
Temperature control range: 5-35℃
Pump power: 3.75W
Pump flow: 700L/MIN
Pump head: 16M
Cooling capacity: 126KW/hr (108360Kcal/hr)
Refrigerant: R22 (environmentally friendly refrigerant R407C/134A... can be customized)

Minimum order quantity: 1 set

Payment method: wire transfer, EXW, FOB/negotiation

Price: Negotiable

Place of Origin: Dongguan City, Guangdong Province, China

Certificate: CE

Delivery time: 10-20 days/negotiation

Service: OEM / ODM

Supply Ability: 1000PCS/month

Packing: plywood packing

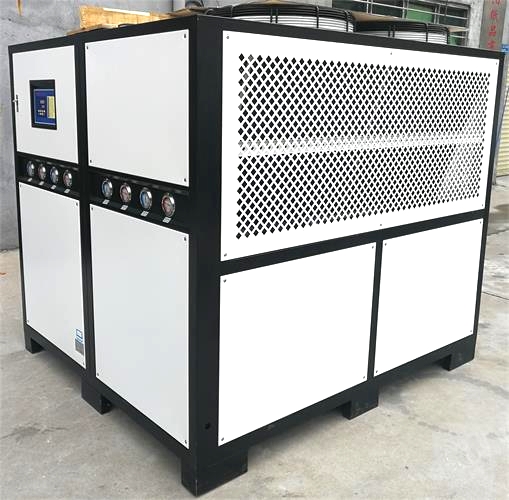

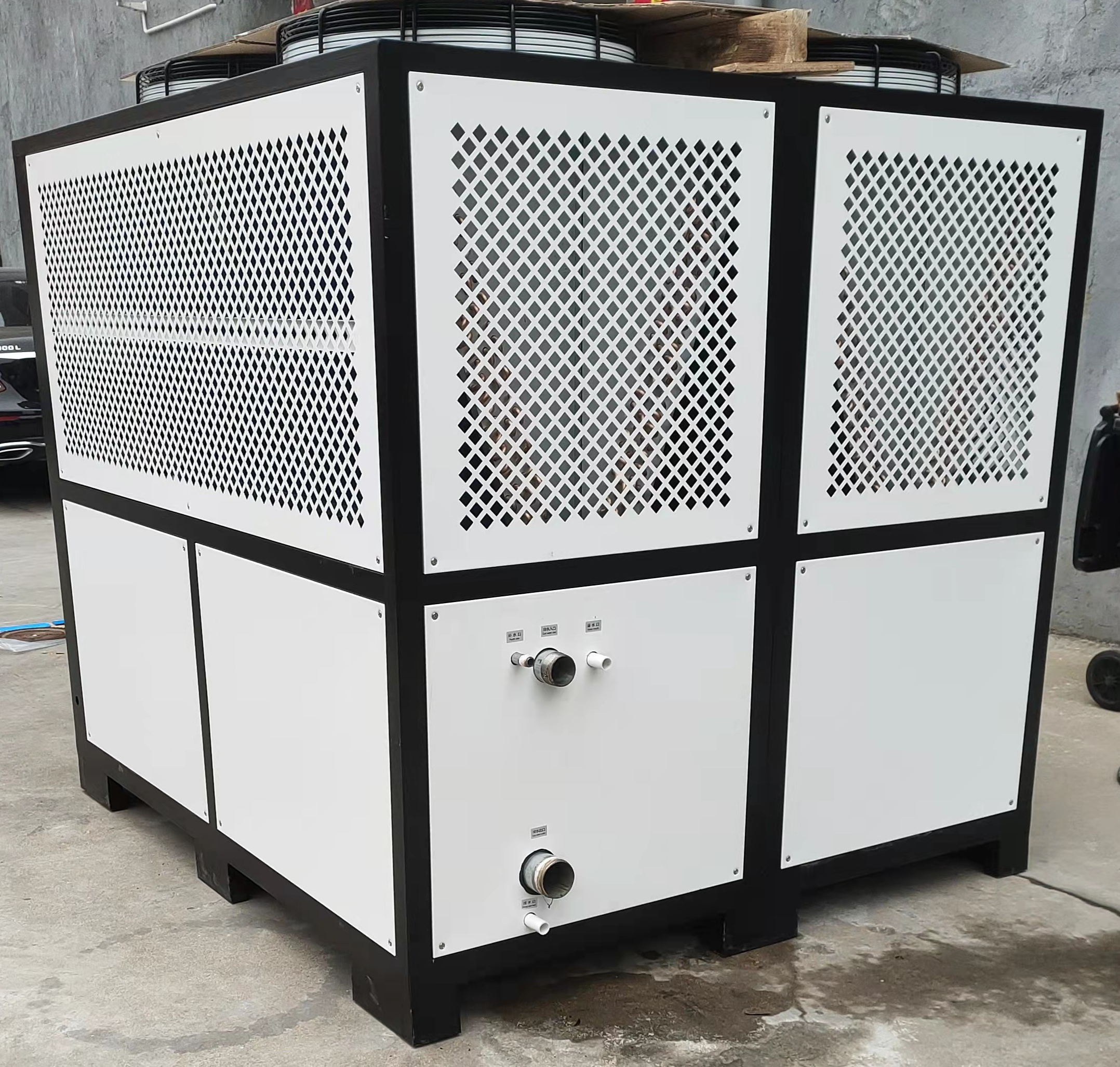

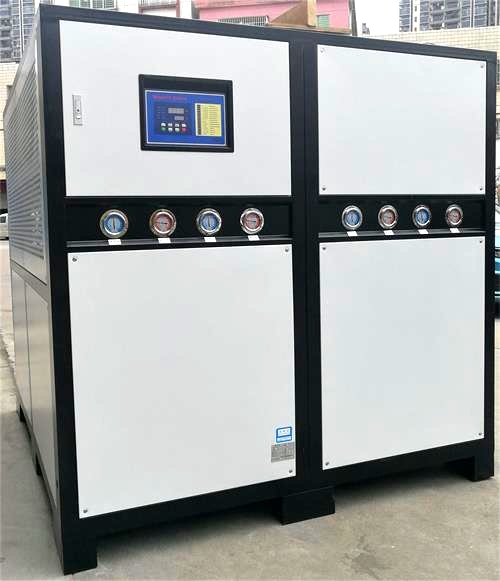

40hp Air-cooled Box Chiller display and advantages

1. High-precision temperature control and high-speed cooling efficiency, and energy-saving and environmentally friendly operation.

2. World-renowned accessories: Panasonic/Daikin/Copeland compressors, Schneider Electric, Muchuan water pumps, Talos copper pipes, etc.

Parameters

Model #		JSFL-40-C
Nominal Cooling Capacity	kW	126
	kCal/h	108360
	BTU	430112
Power Supply	3PH-400V-50HZ
Total Power Input	kW	36.27
Operation Current	A	56
Compressor	Brand	Copeland
	Type	Full-hermetic scroll
	Power input（kW）	7.35 * 4PC
Cooling Fan	Type	External rotor axial fan
Cooling Fan	Power (kW)	0.78 * 4PC
Pump	Power(kW)	3.75
	Flow rate (m³/h)	42
	Pump head (m)	16
Condenser	Type	Aluminum fin & Copper tube
Evaporator	Type	Copper coil
Water Tank	Material	SUS Stainless steel
Water Tank	Volume (L)	350
Pipe fitting	ø Medium Outlet	DN80
Pipe fitting	ø Medium Inlet	DN80
Electrical	AC Contactor	Schneider
Cooling Condition	Ambient Temp.	5℃ - 45℃
	Chilled Water Temp Range	5℃ - 30℃
	Temp Accuracy	±1℃
Alarming System	Abnormal Temperature, Phase reverse/missing, High/Low Pressure Fault, Compressor overload, Compressor overheat, Pump overload, Medium low level, Short-circuit


Temperature Display	Push-button digital display
Cooling medium	Tap-water
Refrigerant	R22
Measurement	LWH(mm)	201017501670
Net Weight	Kg	1200

Why buy a chiller from us?

A. Leading manufacturer of industrial chillers for 20 years.

B. Expert in industrial cooling solutions.

C. Many customized services can be provided for industrial chillers.

D. Stable quality + fast delivery time + reasonable price + strong technical support + intimate after-sales service.

E. Our industrial chillers have passed CE certification.

Applications

Thank you for your patience!

If you need to inquire about prices and technical issues, please call 13925748878 Miss Zhu，We will provide you with the best quality service.
