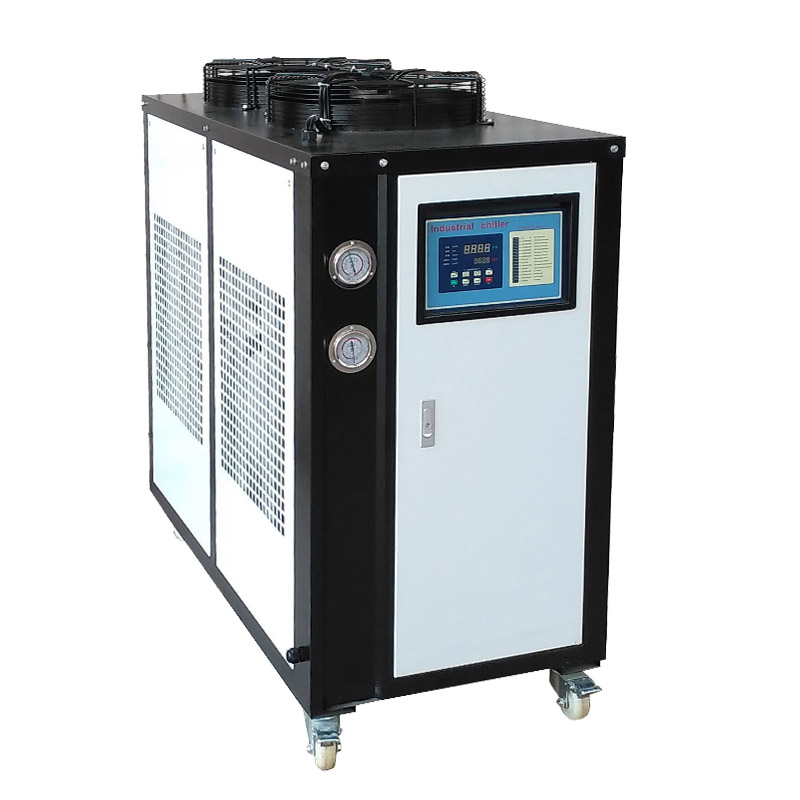

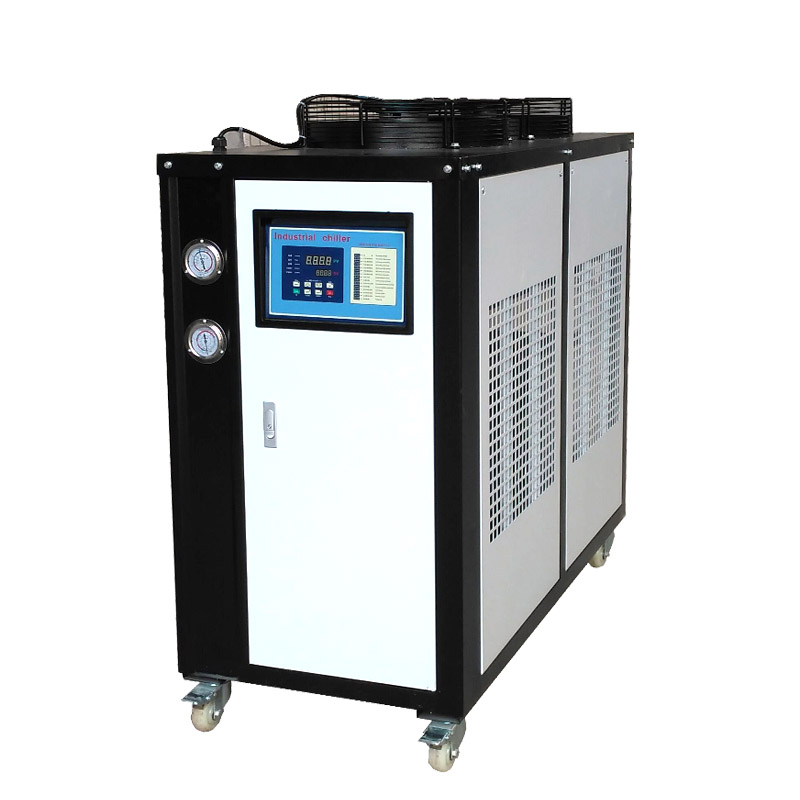

3PH-200V-50HZ 5HP Air-cooled Box Chiller

3PH-200V-50HZ 5hp Air-cooled Box Chiller

Introduction

This is a 3PH-200-V-50HZ 5HP air-cooled box chiller. With a cooling capacity of 15kW (12900Kcal/hr), this model is suitable for injection molding machine mold cooling, high-frequency welding machine cooling, vacuum molding machine mold cooling, reactor cooling, etc.
The customized high-efficiency energy-saving system can save energy by 13% and reduce production costs. Create real value for customers and improve production efficiency.
The machine  is guaranteed for 12 months and provided with life-long free technical guide services.

Model: JSFL-05-D

Brand: Jiusheng

Voltage: 3PH-200V-50HZ
Compressor power: 5HP/3.75KW
Temperature control range: 5-35℃
Pump power: 375W
Pump flow: 100L/min
Pump head: 22m
Cooling capacity: 15kW/hr (12900Kcal/hr)

Minimum order quantity: 1 set

Payment method: wire transfer, or by negotiation

Price: Negotiable

Place of Origin: Dongguan, Guangdong, China

Certificate: CE

Delivery time: Within 10 business days.

Service: OEM / ODM

Supply Ability: 1000PCS/month

Packing: plywood packing

Features

1. High-precision temperature control and high-speed cooling efficiency；energy-saving and environmentally friendly operation.

2. World-renowned full hermetic scroll compressor: Panasonic/Daikin/Copeland, Schneider Electric, Muchuan water pumps, Talos copper pipes, etc.

3. Built-in stainless steel water tank, high-performance, high-flow special pump;

4. The bottom of the fuselage is equipped with swivel casters, which is flexible and easy to move.

5. Streamlined aesthetic design, concave-convex design of the operation panel (humanized design), the operation procedure is clear at a glance;

6. Compared with the traditional control method, this special controller has obvious advantages such as anti-electromagnetic interference, anti-cold, anti-heat, strong control logic, sensitive response and accurate action.

7. Comprehensive safety protection: 1) High and low pressure protection and safety valve of the refrigeration system; 2) Soft and hard double protection of compressor overload; 3) Phase loss, reverse, undervoltage and overvoltage protection of the power supply; 4) Water system Freeze protection and water flow protection.

Parameters

Why buy a chiller from us?

A. Leading manufacturer of industrial chillers for 20 years.

B. Expert in industrial cooling solutions.

C. Many customized services can be provided for industrial chillers.

D. Stable quality + fast delivery time + reasonable price + strong technical support + intimate after-sales service.

E. Our industrial chillers have passed CE certificate.

Applications
