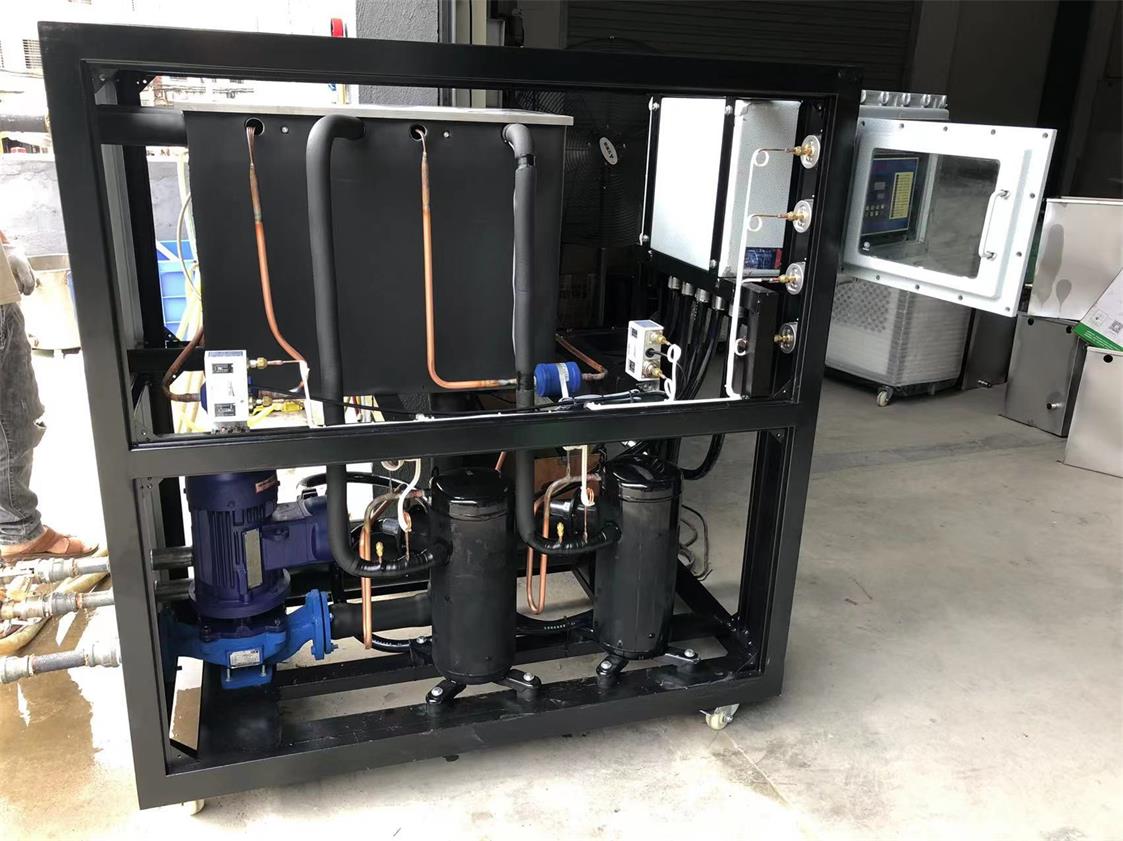

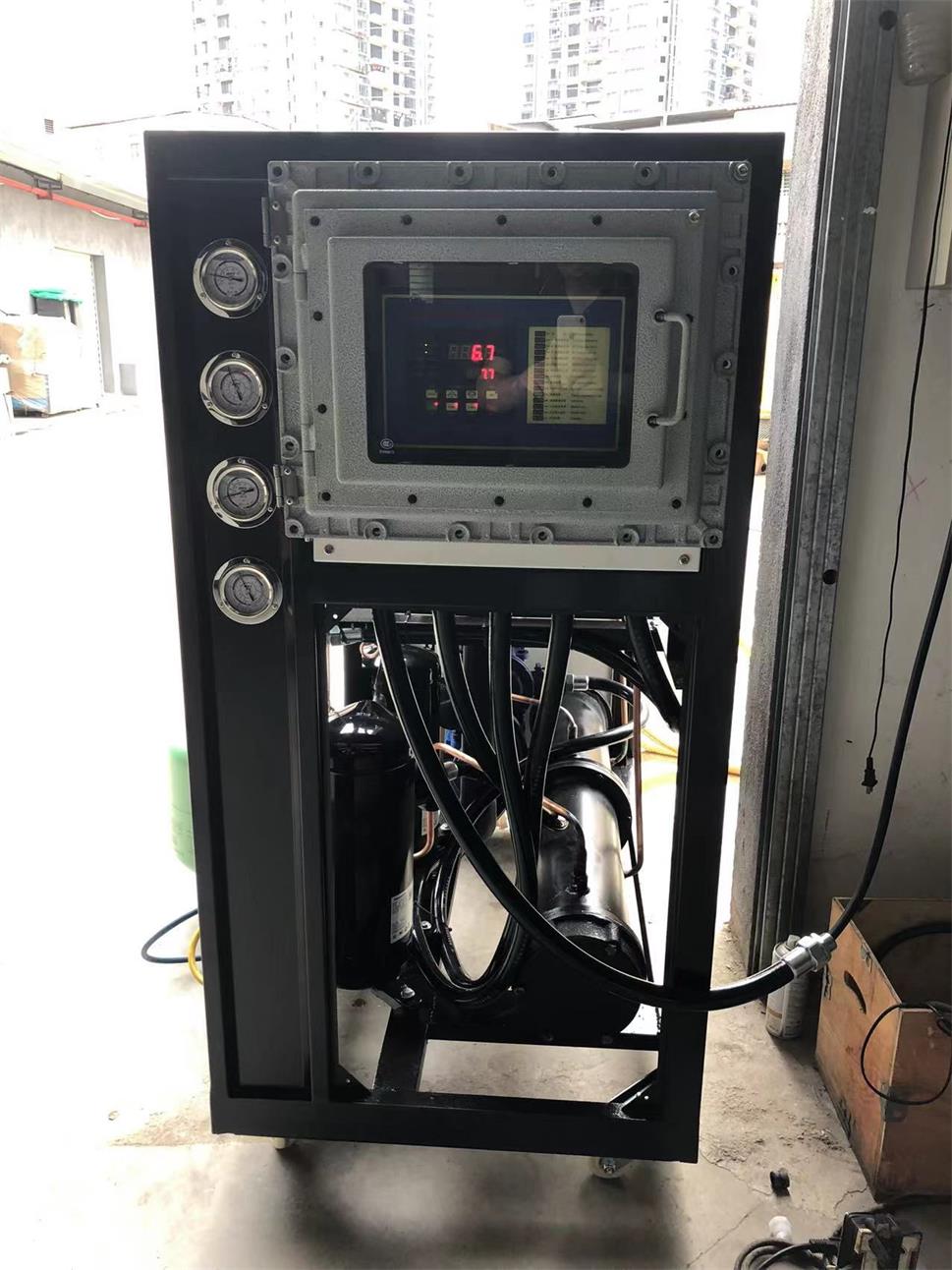

10HP Explosion-proof Water-cooled Box Chiller

10hp Explosion-proof Water-cooled Box Chiller

Introduction

This is a 10HP Explosion-proof water-cooled box chiller. The cooling capacity is 30KW (25800Kcal/hr). This model is suitable for industries with strict safety requirement such as petrochemical, oil refinery etc.

The unit can use R407C\R410A\R404A\R134A and other environmentally friendly refrigerants, and customize it into a 10HP water-cooled environmentally friendly chiller.

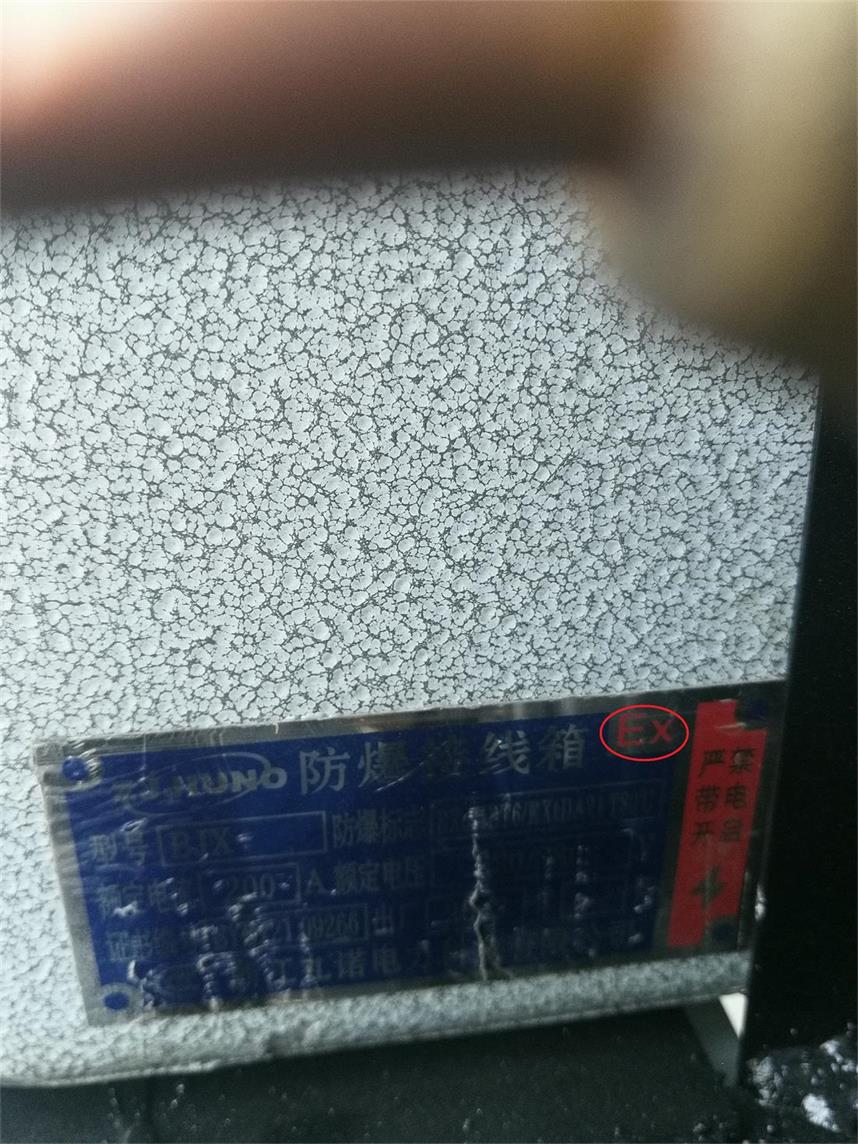

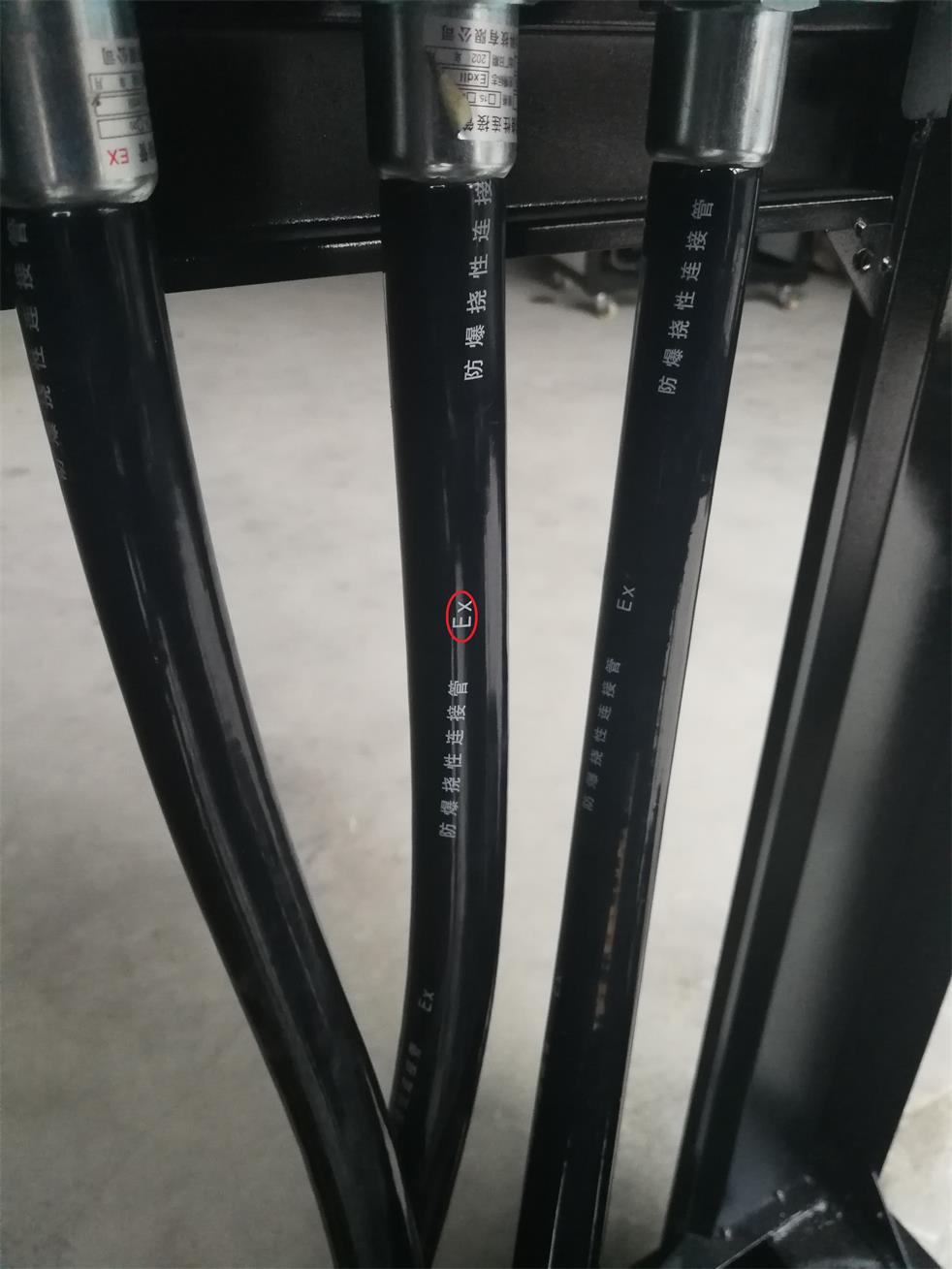

The 10HP explosion-proof water cooled box chiller is EX-marked. It can be used when connected to a power supply and a cooling water tower, and it is easy to install, and the cooling capacity is larger than that of air-cooled chillers.

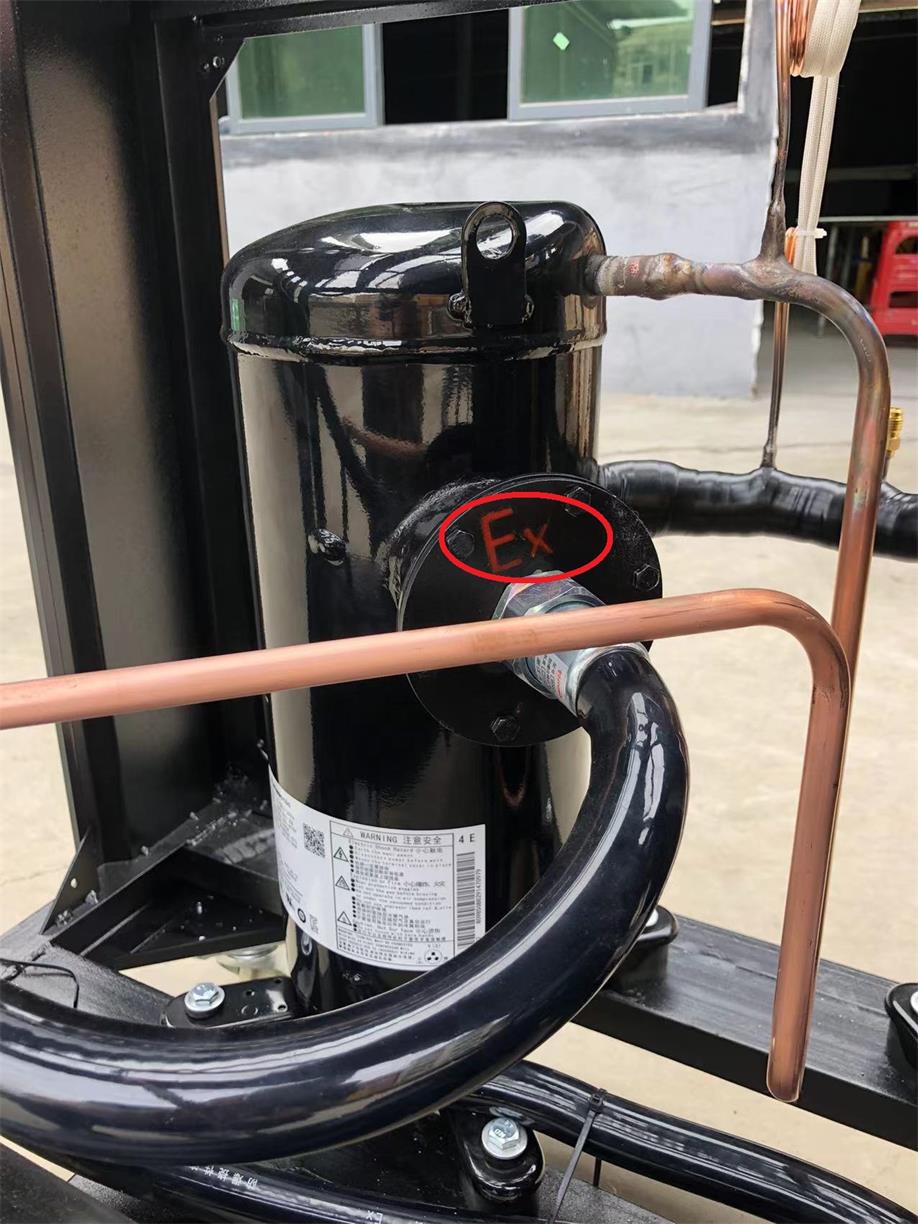

The chiller adopts full closed scroll compressor from international brands such as Panasonic, Copeland, and Daikin. Stable operation, low noise and fast cooling. The standard temperature can be controlled at 5-35°C.

Model: JSSL-10-Ex

Brand: Jiusheng

Voltage: 3PH-380V 50HZ (can be customized according to the needs of different regions)

Compressor power: 10HP/7.35KW

Temperature control range: 5-35℃

Pump power: 750W

Pump flow: 200L/MIN

Pump head: 13M

Cooling capacity: 30KW/hr (25800kCal/hr)

Refrigerant: R22 (environmentally friendly refrigerant R407C/134A... can be customized)

Minimum order quantity: 1 set

Payment method: wire transfer, EXW, FOB/negotiation

Price: Negotiable

Place of Origin: Dongguan City, Guangdong Province, China

Certificate: CE

Delivery time: 10-20 days/negotiation

Service: OEM / ODM

Supply Ability: 1000PCS/month

Packing: plywood packing

Features

1. High-precision temperature control and high-speed cooling efficiency,  energy-saving and environmentally friendly operation.

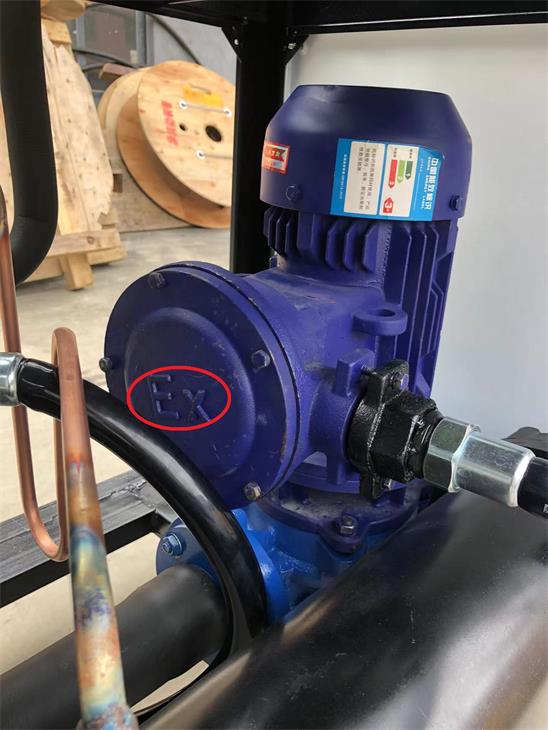

2. World-renowned accessories: Panasonic/Daikin/Copeland compressors, Schneider Electric, Muchuan water pumps, Talos copper pipes, etc.

3. Built-in stainless steel water tank, high-performance, high-flow special pump;

4. Streamlined aesthetic design, concave-convex design of the operation panel (humanized design), and the operation procedure is clear at a glance;

5. Compared with the traditional control method, this special controller has obvious advantages such as anti-electromagnetic interference, anti-cold, anti-heat, strong control logic, sensitive response and accurate action.

6. Comprehensive safety protection: 1) High and low pressure protection and safety valve of the refrigeration system; 2) Soft and hard double protection of compressor overload; 3) Phase loss, reverse, undervoltage and overvoltage protection of the power supply; 4) Water system Freeze protection and water flow protection.

Parameters

Why buy a chiller from us?

A. Leading manufacturer of industrial chillers for 20 years.

B. Expert in industrial cooling solutions.

C. Many customized services can be provided for industrial chillers.

D. Stable quality + fast delivery time + reasonable price + strong technical support + intimate after-sales service.

E. Our industrial chillers have passed CE certification.

Applications
